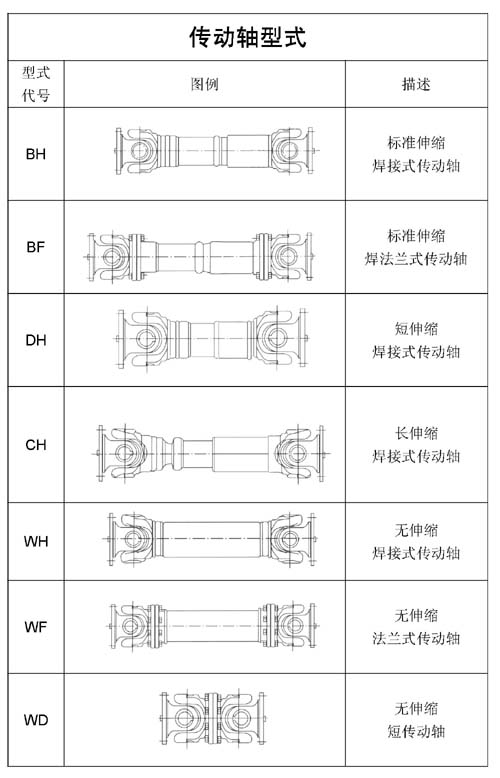

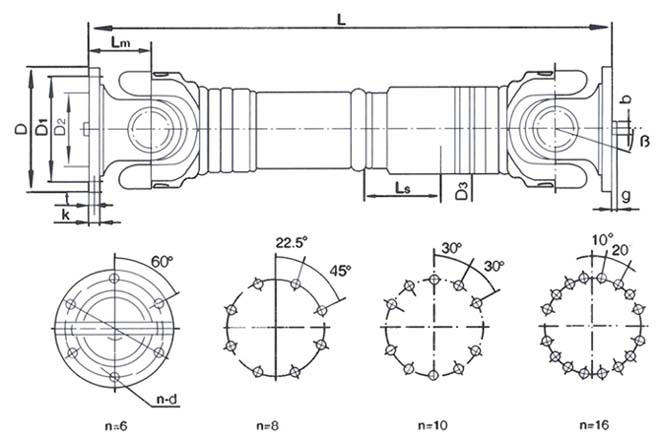

SWC系列傳動軸（JB5513-1991) | ||||||||||||||||
| 通 用尺寸 | 型號 | 100 | 120 | 150 | 180 | 225 | 250 | 285 | 315 | 350 | 390 | 440 | 490 | 550 | 620 | |
額定扭矩 (N.m) | 1,250 | 2,500 | 5,000 | 12,500 | 40,000 | 63,000 | 90,000 | 125,000 | 180,000 | 250,000 | 385,000 | 500,000 | 710,000 | 1,000,000 | ||
疲勞扭矩 (N.m) | 630 | 1,250 | 2,500 | 6,300 | 20,000 | 31,500 | 45,000 | 63,000 | 90,000 | 125,000 | 180,000 | 250,000 | 355,000 | 500,000 | ||
β（о） | 25 | 25 | 25 | 25 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | ||
D1 | 84 | 102 | 130 | 155 | 196 | 218 | 245 | 280 | 310 | 345 | 390 | 435 | 492 | 555 | ||
D2 | 57 | 75 | 90 | 105 | 135 | 150 | 170 | 185 | 210 | 235 | 255 | 275 | 320 | 380 | ||
D3 | 60 | 70 | 89 | 114 | 152 | 168 | 194 | 219 | 267 | 267 | 325 | 325 | 426 | 426 | ||
Lm | 55 | 65 | 80 | 110 | 120 | 140 | 160 | 180 | 194 | 215 | 260 | 270 | 305 | 340 | ||
n-d | 6-9 | 8-11 | 8-13 | 8-17 | 8-17 | 8-19 | 8-21 | 10-23 | 10-23 | 10-25 | 16-28 | 16-31 | 16-31 | 10-38 | ||
K | 7 | 8 | 10 | 17 | 20 | 25 | 27 | 32 | 35 | 40 | 42 | 47 | 50 | 55 | ||
t | 2.5 | 2.5 | 3.0 | 5.0 | 5.0 | 6.0 | 7.0 | 8.0 | 8.0 | 8.0 | 10.0 | 12.0 | 12.0 | 12.0 | ||
b | ─ | ─ | ─ | ─ | 32 | 40 | 40 | 40 | 50 | 70 | 80 | 90 | 100 | 100 | ||
g | ─ | ─ | ─ | ─ | 9.0 | 12.5 | 15.0 | 15 | 16 | 18 | 20 | 22.5 | 22.5 | 25 | ||
螺栓規格 | M8 | M10 | M12 | M16 | M16 | M18 | M20 | M22 | M22 | M24 | M27 | M30 | M30 | M36 | ||
擰緊力矩 (N.m) | 45 | 78 | 180 | 270 | 270 | 372 | 526 | 710 | 710 | 906 | 1340 | 1820 | 1820 | 3170 | ||
BH型 | L (mm) | 390 | 485 | 590 | 810 | 920 | 1035 | 1190 | 1315 | 1410 | 1590 | 1875 | 1985 | 2300 |
| |
伸長量 Ls (mm) | 55 | 80 | 80 | 100 | 140 | 140 | 140 | 140 | 150 | 170 | 190 | 190 | 240 |
| ||
重量 (Kg) | 6.1 | 10.8 | 24.5 | 70 | 122 | 172 | 263 | 382 | 582 | 738 | 1190 | 1452 | 2380 |
| ||
BF型 | L (mm) |
|
|
| 810 | 920 | 1035 | 1190 | 1315 | 1410 | 1590 | 1875 | 1985 | 2300 | 2500 | |
伸長量 Ls (mm) |
|
|
| 100 | 140 | 140 | 140 | 140 | 150 | 170 | 190 | 190 | 240 | 240 | ||
重量 (Kg) |
|
|
| 80 | 138 | 196 | 295 | 428 | 632 | 817 | 1290 | 1631 | 2567 | 3267 | ||
DH型 | L (mm) | 1 |
|
|
| 650 | 710 | 795 | 950 | 1070 | 1170 | 1300 |
|
|
|
|
2 |
|
|
| 600 | 640 | 735 | 880 | 980 | 1070 | 1200 |
|
|
|
| ||
3 |
|
|
| 500 |
|
|
|
|
|
|
|
|
|
| ||
伸長量 Ls (mm) | 1 |
|
|
| 75 | 85 | 100 | 120 | 130 | 140 | 150 |
|
|
|
| |
2 |
|
|
| 55 | 70 | 70 | 80 | 90 | 90 | 90 |
|
|
|
| ||
3 |
|
|
| 40 |
|
|
|
|
|
|
|
|
|
| ||
重量 (Kg) | 1 |
|
|
| 58 | 95 | 148 | 229 | 346 | 558 | 655 |
|
|
|
| |
2 |
|
|
| 56 | 96 | 136 | 221 | 334 | 485 | 600 |
|
|
|
| ||
3 |
|
|
| 52 |
|
|
|
|
|
|
|
|
|
| ||
CH型 | L (mm) | 1 |
|
|
| 925 | 1020 | 1215 | 1475 | 1600 | 1715 | 1845 | 2110 | 2220 | 2585 |
|
2 |
|
|
| 1425 | 1500 | 1615 | 1875 | 2000 | 2115 | 2245 | 2510 | 2620 | 3085 |
| ||
伸長量 Ls (mm) | 1 |
|
|
| 200 | 220 | 300 | 400 | 400 | 400 | 400 | 400 | 400 | 500 |
| |
2 |
|
|
| 700 | 700 | 700 | 800 | 800 | 800 | 800 | 800 | 800 | 1000 |
| ||
重量 (Kg) | 1 |
|
|
| 74 | 132 | 190 | 300 | 434 | 672 | 817 | 1312 | 1554 | 2585 |
| |
2 |
|
|
| 104 | 182 | 235 | 358 | 514 | 823 | 964 | 1537 | 1779 | 3045 |
| ||
WH型 | L (mm) |
|
|
| 480 | 520 | 620 | 720 | 805 | 875 | 955 | 1155 | 1205 | 1355 |
| |
重量 (Kg) |
|
|
| 48 | 78 | 124 | 185 | 262 | 374 | 506 | 790 | 1014 | 1526 |
| ||
WF型 | L (mm) |
|
|
| 560 | 610 | 715 | 810 | 915 | 980 | 1100 | 1290 | 1360 | 1510 | 1690 | |
重量 (Kg) |
|
|
| 58 | 93 | 143 | 220 | 300 | 412 | 588 | 880 | 1173 | 1663 | 2332 | ||
WD型 | L (mm) |
|
|
| 440 | 480 | 560 | 640 | 720 | 776 | 860 | 1040 | 1080 | 1220 | 1360 | |
重量 (Kg) |
|
|
| 52 | 82 | 127 | 189 | 270 | 370 | 524 | 798 | 1055 | 1524 | 2120 | ||
| 注：(1) 上表中未列出所有長度及伸縮量, 具體可按客戶要求. (2) BH、GH、WF型的SWC620-1200大規格萬向聯軸器可供貨, 伸縮量按客戶要求. | ||||||||||||||||
